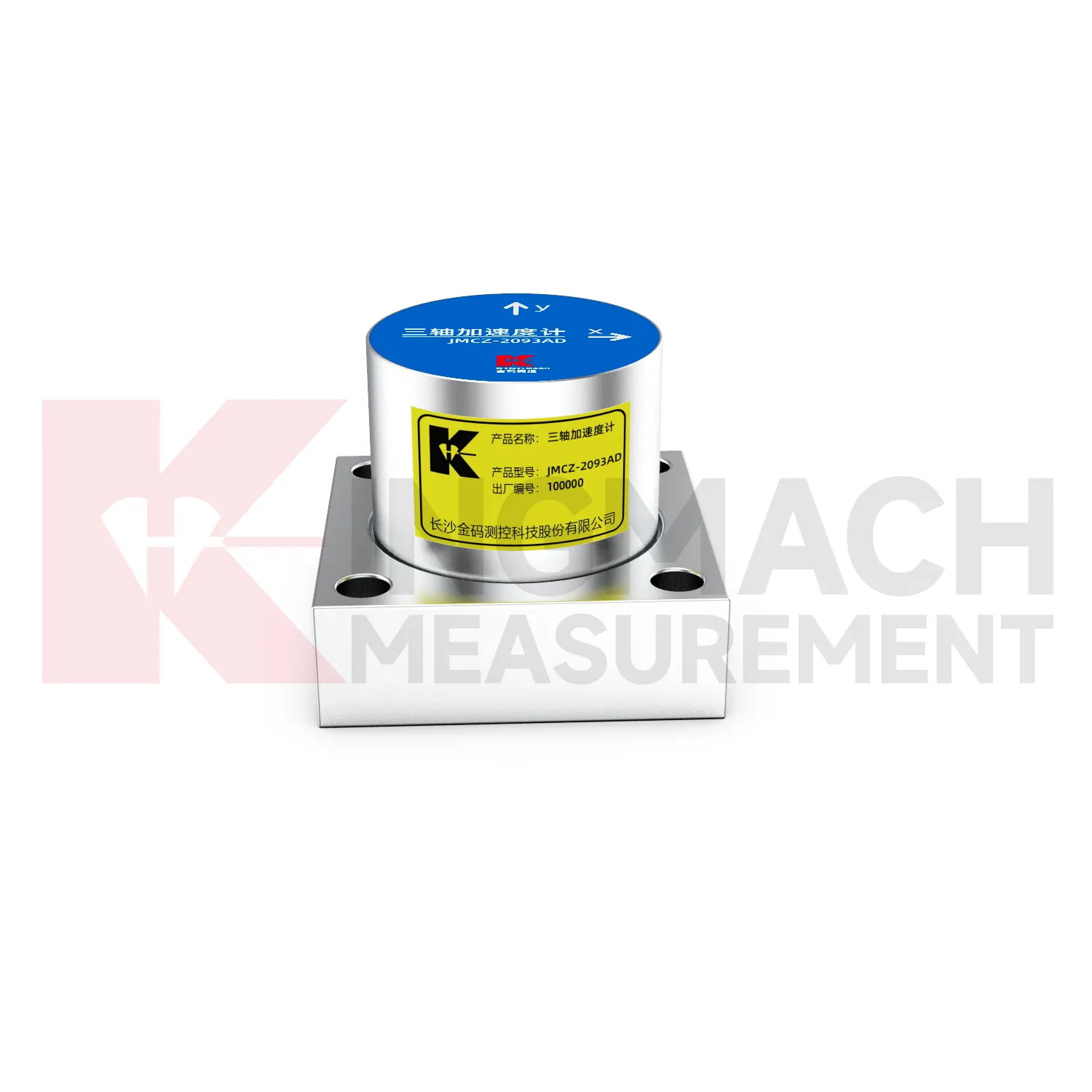

tri axis accelerometer
Dynamic acquisition is the part that makes Kingmach tri axis accelerometer useful after installation. A short event can be missed if the recording plan is wrong. A long quiet period can hide a trend if the review interval is weak. The monitoring team should define whether the project needs continuous recording, triggered capture, periodic testing, or manual event review. Bridges, tunnels, blasting zones, machinery rooms, and seismic stations all have different rhythms. A clear acquisition plan protects the value of the sensor by making sure the important motion is actually stored, named, and available for analysis. The plan should also define who checks missing records, how alarms are reviewed, and which related channels are opened during an abnormal event. Without that process, even accurate dynamic data may be hard to use.
If the reading changes suddenly, the first check should include the sensor attachment, cable route, connector, channel name, and recent field activity. This prevents a maintenance issue from being mistaken for structural behavior.
Long-term monitoring benefits from repeatable procedure. When the same point, direction, event definition, and analysis method are preserved, new vibration records can be compared with earlier records in a defensible way.
The report should not leave the waveform isolated. It should explain what the asset was doing, why the point was measured, which event triggered interest, and what follow-up action or observation was made.
Application of tri axis accelerometer
Railway projects use Kingmach tri axis accelerometer to study vibration from train passage, track structure response, bridge sections, station buildings, and nearby sensitive structures. The data can help separate normal operational vibration from unusual behavior caused by foundation change, structural looseness, or construction disturbance. Monitoring should identify the track side, structural location, axis direction, and train or work event related to the record. Acceleration results are stronger when reviewed with settlement, displacement, temperature, and inspection records. This keeps dynamic monitoring connected to maintenance and service decisions. A repeated vibration pattern during regular operation may become the baseline, while a new pattern after work or weather may trigger closer review.
Railway records should preserve operating context in a way that bridge or building records may not need. Train type, passing direction, speed condition, maintenance window, nearby track work, and station activity can all influence the signal. If these details are missing, a vibration curve may be technically complete but difficult to explain.
For long corridors, point naming is especially important. A useful railway report should show chainage, line side, structure type, sensor direction, and the event being reviewed. That lets maintenance teams compare one section with another and decide whether the response is local, repeated, or connected to a broader service condition.
The future of tri axis accelerometer
Future Kingmach tri axis accelerometer will be specified around workflows rather than model names. A project may need continuous vibration monitoring, short event capture, cable force testing, weak ground motion, or machinery response tracking. Each workflow has different needs for mounting, acquisition, analysis, reporting, and maintenance. Workflow-led planning makes the system easier to install and operate because the buyer can connect the monitoring method with the actual asset, event type, and review process. It also makes future maintenance easier because the record already explains why the point exists and how it is used.
Future workflow documents can describe who uses the record and what action follows each event type. A bridge engineer, machinery technician, construction manager, and asset owner may all need different views of the same dynamic measurement. The workflow makes those views predictable.
This approach also improves purchasing discipline. Instead of asking for a device in isolation, the project defines mounting access, event capture, review method, reporting format, maintenance duty, and handover needs before installation begins.
Care & Maintenance of tri axis accelerometer
Care and maintenance of Kingmach tri axis accelerometer should begin with mounting. The sensor must be fixed to a surface that moves with the structure being measured. Loose bolts, flexible plates, paint layers, temporary brackets, or nearby cable vibration can all create misleading data. Before acceptance, record the mounting location, surface condition, axis direction, and first test record. During inspection, check that the sensor has not been struck, loosened, covered, or moved. Good mounting care protects the meaning of every later waveform. If the point is disturbed, the maintenance record should say when it happened and whether the following data remains comparable.
During interpretation, the team should compare the motion with nearby strain, displacement, tilt, load, wind, temperature, traffic, machinery, or construction notes. That wider view helps separate normal response from a pattern that needs inspection.
If the reading changes suddenly, the first check should include the sensor attachment, cable route, connector, channel name, and recent field activity. This prevents a maintenance issue from being mistaken for structural behavior.
Kingmach tri axis accelerometer
Kingmach tri axis accelerometer help engineering teams understand vibration risk rather than simply collect motion traces. In bridge, tunnel, building, railway, machinery, and ground-motion work, acceleration data shows how a structure moves when traffic, wind, machinery, blasting, earthquake activity, or cable vibration occurs. The useful result is not just a waveform; it is a record that shows frequency, response level, timing, and whether movement is repeating or changing. Dynamic monitoring is especially useful when movement is too quick for visual inspection or too subtle to judge by touch. When acceleration records are reviewed with inspection notes, environmental conditions, and related structural instruments, engineers can separate normal operating response from behavior that requires attention. This makes vibration measurement part of a practical safety and maintenance process.
For field teams, the record is strongest when the waveform is tied to a named event and a known physical point. The note should state what was operating, what changed on site, whether other instruments reacted, and whether the motion repeated under similar conditions.
FAQ
Q: What are Kingmach tri axis accelerometer used for?
A: They are used to record acceleration and vibration behavior so engineers can review structural motion, frequency response, impact events, ground motion, and cable vibration.
Q: Where are they commonly applied?
A: They are used in bridges, buildings, tunnels, railways, machinery areas, ground-motion stations, wind towers, and construction vibration monitoring.
Q: Why not rely only on visual inspection?
A: Many dynamic problems happen too quickly or too subtly to see, while acceleration records preserve timing, direction, and frequency information.
Q: Can acceleration data support cable force review?
A: Yes, when the vibration measurement and calculation method are configured correctly for the cable being tested.
Q: Should acceleration data be reviewed alone?
A: No. It is stronger when compared with strain, displacement, tilt, load, environmental records, and inspection notes.
During interpretation, the team should compare the motion with nearby strain, displacement, tilt, load, wind, temperature, traffic, machinery, or construction notes. That wider view helps separate normal response from a pattern that needs inspection.
